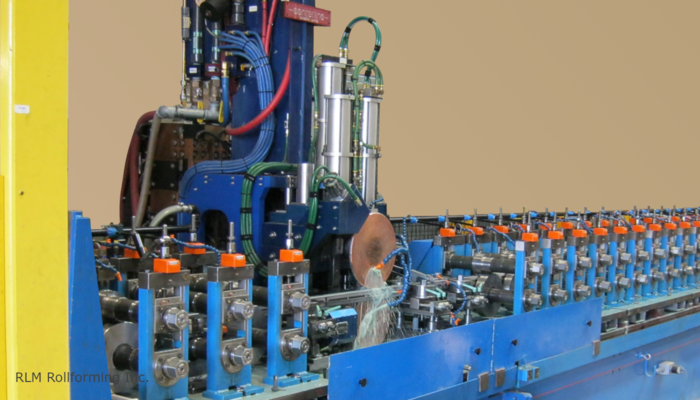

RLM manufacturing system with an integrated Rotary Spot Welding process. This system features a rafted rollformer, Centerline 5000 Series welder and a high speed tube flying cutoff system.
RLM Rollforming Project 3343
Automotive Bumper manufactured from 1.4mm 980 MPa Dual Phase material with a rotary spot weld.
RLM Rollforming Project 4554
RLM manufacturing system with an integrated Rotary Spot Welding process. This sytem features a rafted rollformer, CenterLine 4000 Series welder and a high speed tube flying cutoff system.
RLM Rollforming Project 4554

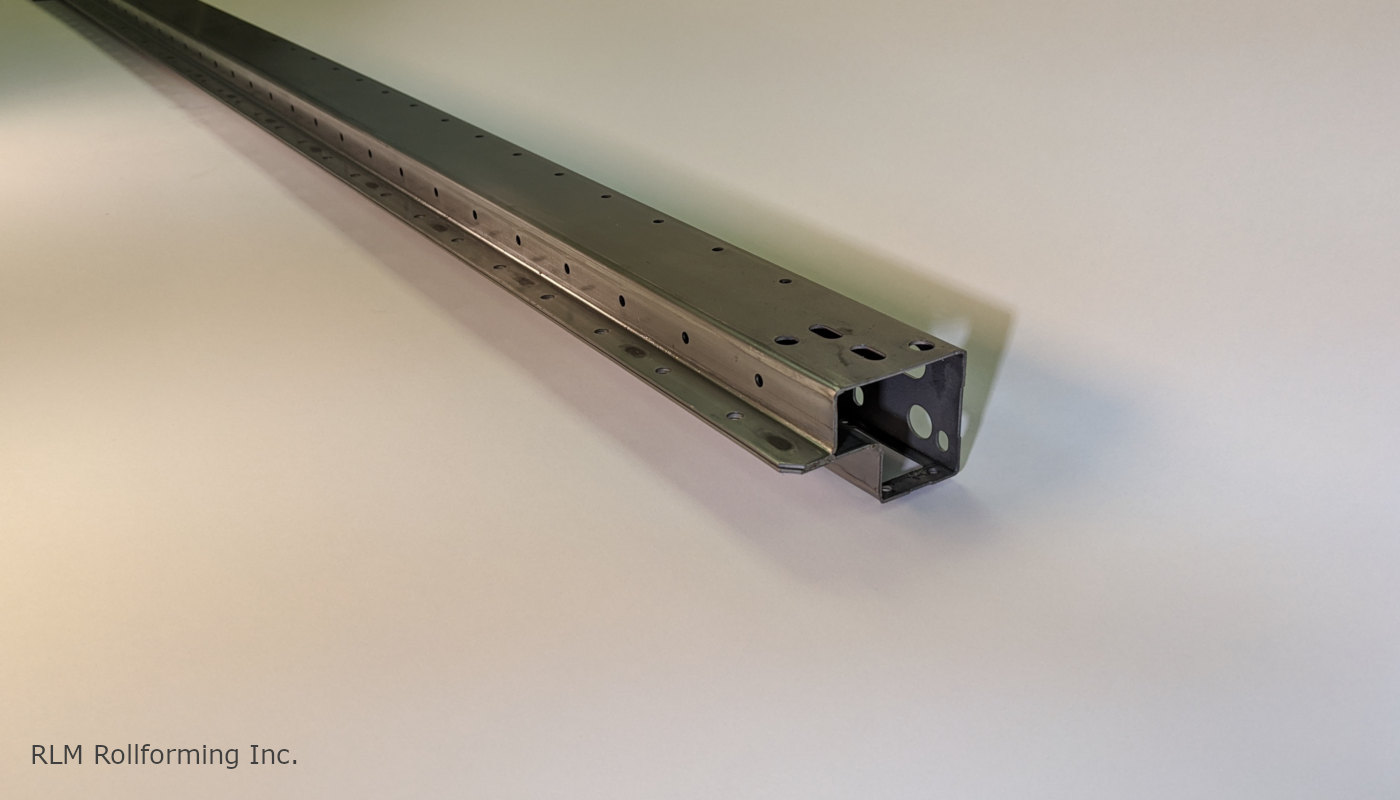

Racking component manufactured on an RLM manufacturing system with an integrated rotary spot weld.
RLM Rollforming Project 4554
Racking component manufactured on an RLM manufacturing system with an integrated rotary spot weld.
RLM Rollforming Project 6622
Racking component manufactured on an RLM manufacturing system with an integrated rotary spot weld.
RLM Rollforming Project 6515
RLM manufacturing system with an integrated Rotary Spot Welding process. This system features a rafted rollformer, Centerline 2000 Series welder and a high speed tube flying cutoff system.
RLM Rollforming Project 6515
Automotive Reinforcement manufactured from 1mm 980 MPa Dual Phase material on an RLM manufacturing system with an integrated spot welder, inline sweep and sweep cutoff.
RLM Rollforming Project 6515
Automotive Reinforcement manufactured from 1mm 980 MPa Dual Phase material on an RLM manufacturing system with an integrated rotary spot welder, inline sweep and sweep flying cutoff.
RLM Rollforming Project 8785
Automotive Door Header with Class A surface produced on an RLM manufacturing system with an integrated rotary spot welder.
RLM Rollforming Project 6323
RLM manufacturing system with an integrated TIG Welding process. This system features a rafted rollformer and a tube cutoff system.
RLM Rollforming Project 6323
Automotive Tubes, manufactured from 1.3mm 980 MPa Dual Phase material on an RLM manufacturing system with an integrated TIG welder.
RLM Rollforming Project 6323

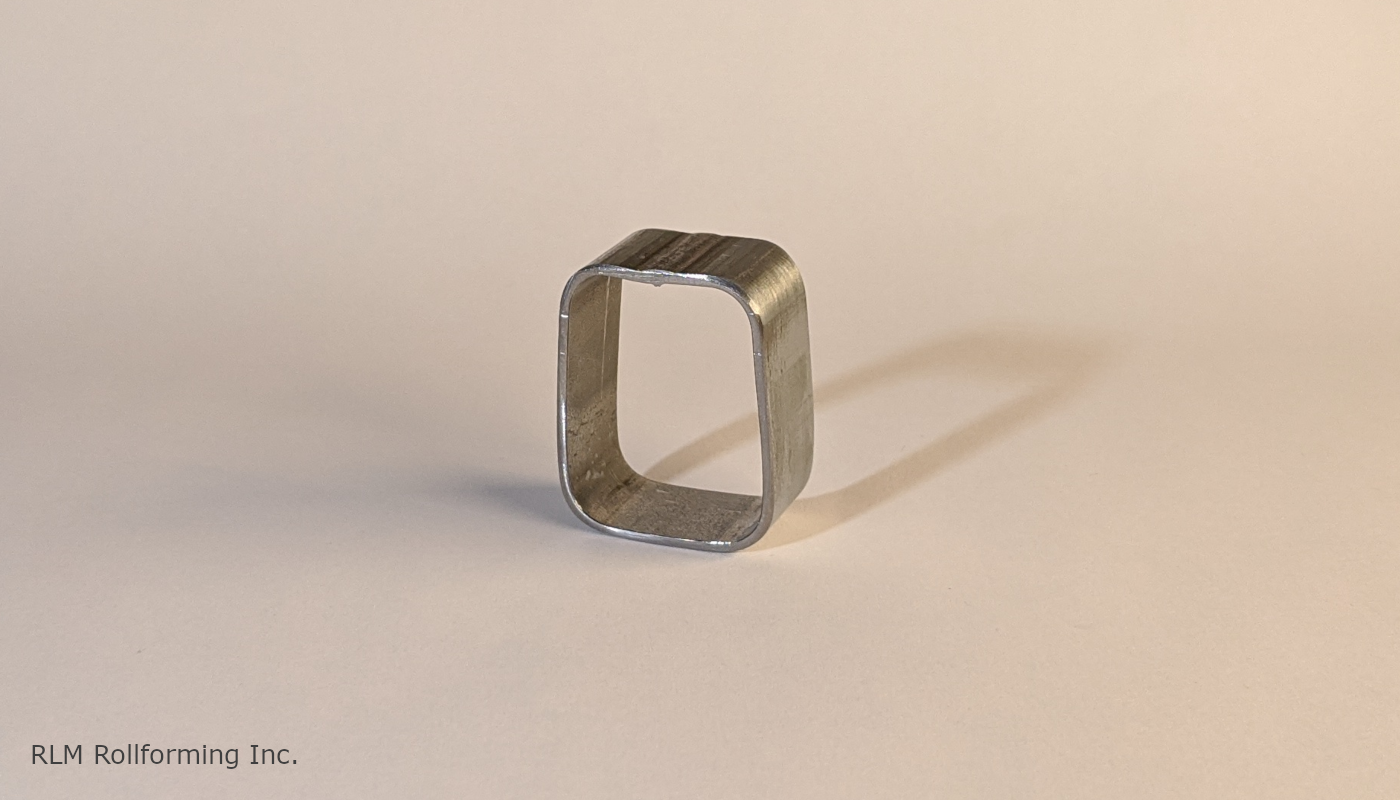

Automotive Tube, manufactured from 1mm 1300 MPa Martensite on an RLM manufacturing system with an integrated TIG welder.
RLM Rollforming Project 3921
Racking Component with an integrated intermittent MIG welding process.
