RLM High Strength Steel Rollforming Projects
RLM Rollforming Project 4451
Automotive Cross Member manufactured from 1.5mm 1500 MPa Martensite on an RLM manufacturing system. Special heavy duty rafts minimize deflection for improved dimensional consistency.
RLM Rollforming Project 4451

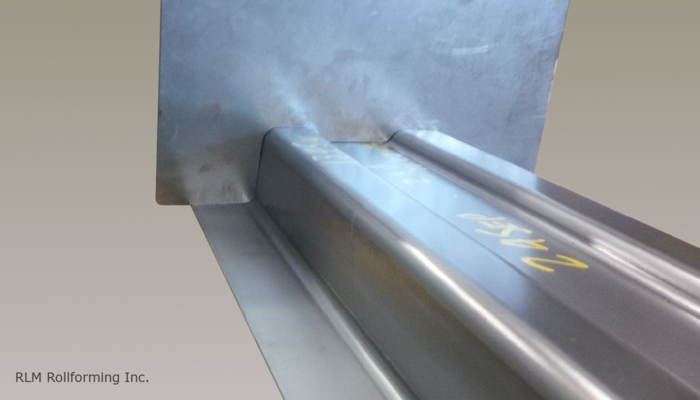

Automotive Cross Member manufactured from 1.5mm 1500 MPa Martensite with a section template. Roll tool design incorporates features to process ultra high strength steel.
RLM Rollforming Project 5897
Automotive Rocker manufactured from 1.1mm 1300 MPa Martensite on an RLM manufacturing system incorporating rafts with fully automatic coupling and low backlash shaft adjustment to set nominal part dimensions.
RLM Rollforming Project 5897
Automotive Rocker manufactured from 1.1mm 1300 MPa Martensite with section template. Roll tool design incorporates dedicated adjustment passes to compensate for material property variation in ultra high strength steel.
RLM Rollforming Project 3787
Automotive Rocker Reinforcement manufactured from 1.2mm 1500 MPa Martensite on an RLM manufacturing system incorporating heavy duty rafts with fully automatic coupling and low backlash shaft adjustment to set nominal part dimensions.
RLM Rollforming Project 3787
Automotive Rocker Reinforcement manufactured from 1.2mm 1500 MPa Martensite with section template. Roll tool design incorporates dedicated overbend passes to individually adjust all angles.
RLM Rollforming Project 7197
Automotive Rocker manufactured from 1.6mm 550 MPa HSLA material on an RLM manufacturing system incorporating rafts with fully automatic coupling and a high speed flying cutoff.
RLM Rollforming Project 7197
Automotive Rocker Reinforcement manufactured from 1.6mm 550 MPa HSLA material with section template.
RLM Rollforming Project 3313
Automotive Rocker manufactured from 1.4mm 980 MPa Dual Phase material on an RLM manufacturing system incorporating rafts with fully automatic coupling and a high speed flying cutoff.
RLM Rollforming Project 3313
Automotive Rocker Reinforcement manufactured from 1.6mm 550 MPa HSLA material with section template.
RLM Rollforming Project 4247
Automotive Rocker manufactured from 1.2mm 1500 MPa Martensite on an RLM manufacturing system incorporating rafts with fully automatic coupling and low backlash shaft adjustment to set nominal part dimensions.
RLM Rollforming Project 4247
Automotive Rocker manufactured from 1.2mm 1500 MPa Martensite with section template. Roll tool design incorporates dedicated adjustment passes to compensate for material property variation in ultra high strength steel.
RLM Rollforming Project 2243
Automotive Rocker Reinforcement manufactured from 1.5mm 1500 MPa Martensite on RLM manufacturing system incorporating heavy duty rafts with fully automatic coupling and low backlash shaft adjustment to set nominal part dimensions.
RLM Rollforming Project 2243
Automotive Rocker manufactured from 1.5mm 1500 MPa Martensite with section template. Roll tool design incorporates dedicated adjustment passes to compensate for material property variation in ultra high strength steel.
RLM Rollforming Project 5705
Automotive Rocker Reinforcement manufactured from 1.3mm 1500 MPa Martensite on an RLM manufacturing system incorporating heavy duty rafts with fully automatic coupling and low backlash shaft adjustment to set nominal part dimensions.
RLM Rollforming Project 5705
Automotive Rocker Reinforcement manufactured from 1.3mm 1500 MPa Martensite with section template. Roll tool design incorporates dedicated overbend passes to individually adjust all angles.
RLM Rollforming Project 7797
Automotive Rocker manufactured from 1.2mm 1500 MPa Martensite on an RLM manufacturing system incorporating rafts with fully automatic coupling and low backlash shaft adjustment to set nominal part dimensions.
RLM Rollforming Project 7797
Automotive Rocker manufactured from 1.2mm 1500 MPa Martensite with section template. Roll tool design incorporates dedicated adjustment passes to compensate for material property variation in ultra high strength steel.
