RLM Precision Rollforming Projects
RLM Rollforming Project 6324
Precision rollforming of automotive Door Header with a Class A surface. Uses integrated rotary spot welding of 3 material thicknesses.
RLM Rollforming Project 6324
Precision rollformed automotive Door Header cross section, displayed on optical comparitor at 10x magnification.
RLM Rollforming Project 5503
Precision rollforming of automotive Sash with Class A surfaces. RLM manufacturing system includes a sweep process and a high speed sweep flying cutoff system.
RLM Rollforming Project 5503
Precision rollformed Sash cross section displayed on optical comparitor at 10x magnification.
RLM Rollforming Project 8197
Precision rollforming of automotive Roof Rail. Manufactured from 301 Bright Stainless Steel with a Class A surface.
RLM Rollforming Project 8197
Precision rollformed automotive Roof Rail cross section displayed on optical comparitor at 10x magnification.
RLM Rollforming Project 3496
Precision rollforming of automotive B-Bumper. The RLM manufacturing system includes an integrated rotary spot welder and high speed flying cutoff for enclosed welded sections.
RLM Rollforming Project 3496
Precision rollformed automotive B-Bumper cross section displayed on optical comparitor at 10x magnification.
RLM Rollforming Project 4806
Precision rollforming of automotive Window Channel. The RLM manufacturing system includes close center rafts with fully automatic coupling and a high speed cutoff.
RLM Rollforming Project 4806
Precision rollformed automotive Window Channel cross section displayed on optical comparitor at 10x magnification.

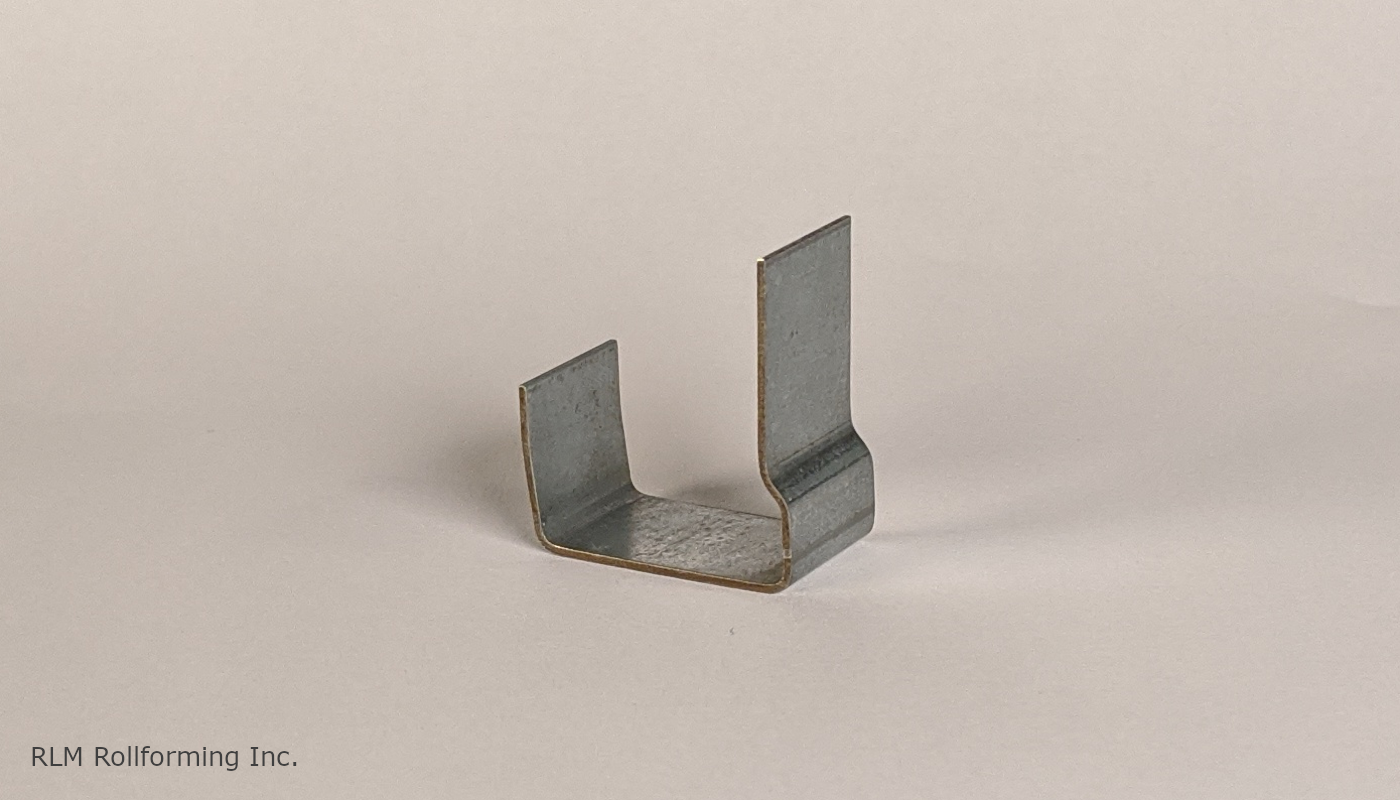

RLM Rollforming Project 7287
Precision rollforming of automotive Glass Channel. The RLM manufacturing system includes close center rafts with fully automatic coupling and a high speed flying cutoff.
RLM Rollforming Project 7287
Precision rollformed Glass Channel cross section displayed on optical comparitor at 10x magnification.
RLM Rollforming Project 7797
Precision rollforming of automotive Door Pillar with Class A surface. The RLM manufacturing system includes an integrated rotary spot welder, an inline sweep process and a high speed sweep flying cutoff system.
RLM Rollforming Project 7797
Precision rollformed automotive Door Pillar cross section displayed on optical comparitor at 10x magnification.
